Allis Chalmers 190
 | 1964 - 1972
Row-Crop tractor |
|---|---|
1964 - 1972 | |
Row-Crop tractor | |
1964 - 1972 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
Allis Chalmers 4.3L 6-cyl gasoline | |
Allis-Chalmers 4.9L 6-cyl diesel |
Engine Detail | |
|---|---|
Allis Chalmers G2500 | |
gasoline | |
6-cylinder | |
liquid-cooled | |
Displacement | 265 ci
4.3 L |
Bore/Stroke | 3.75x4.00 inches
95 x 102 mm |
Air cleaner | dry |
Compression | 8:1 |
Rated RPM | 2200 |
Firing order | 1-5-3-6-2-4 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 18 qts
17.0 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.016 inches
0.406 mm |
Intake valve clearance | 0.020 inches (hot)
0.508 mm |
Exhaust valve clearance | 0.025 inches (hot)
0.635 mm |

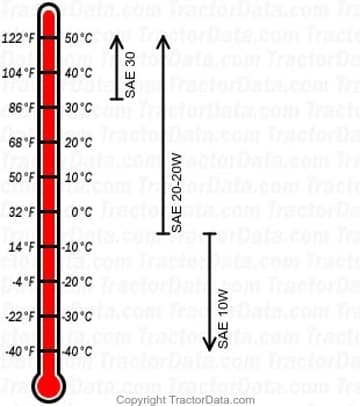

Engine Oil | |
|---|---|
 | |
Oil capacity | 12 qts
11.4 L |
Engine Detail | |
|---|---|
Allis-Chalmers 2800 | |
diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 301 ci
4.9 L |
Bore/Stroke | 3.875x4.25 inches
98 x 108 mm |
Fuel system | direct injection |
Air cleaner | dry |
Compression | 16.25:1 |
Rated RPM | 2200 |
Firing order | 1-5-3-6-2-4 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 18 qts
17.0 L |
Intake valve clearance | 0.015 inches
0.381 mm |
Exhaust valve clearance | 0.015 inches
0.381 mm |

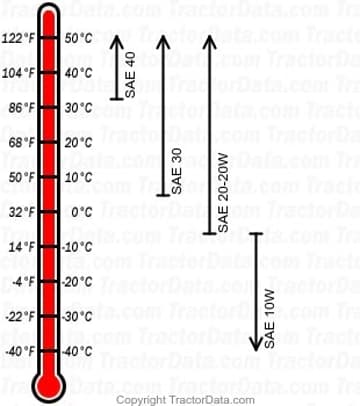

Engine Oil | |
|---|---|
 | |
Oil capacity | 12 qts
11.4 L |

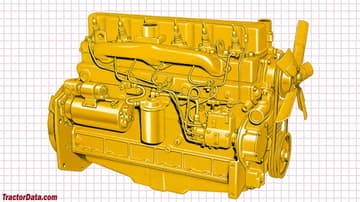

Allis Chalmers 190 Engine | |
|---|---|
 |
