Allis Chalmers 190XT

1964 - 1971

Row-Crop tractor

Row-Crop tractor

Allis Chalmers 4.9L 6-cyl gasoline

Allis-Chalmers 4.9L 6-cyl diesel

Allis-Chalmers 4.9L 6-cyl LP gas

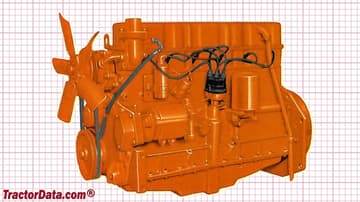

Allis Chalmers G2800

gasoline

6-cylinder

liquid-cooled

Displacement

301 ci 4.9 L

Bore/Stroke

3.875x4.25 inches 98 x 108 mm

Air cleaner

dry

Compression

8:1

Rated RPM

2200

Firing order

1-5-3-6-2-4

Starter

electric

Starter volts

12

Coolant capacity

18 qts 17.0 L

Sparkplug gap

0.025 inches 0.635 mm

Point gap

0.016 inches 0.406 mm

Intake valve clearance

0.020 inches (hot) 0.508 mm

Exhaust valve clearance

0.025 inches (hot) 0.635 mm

Oil capacity

12 qts 11.4 L

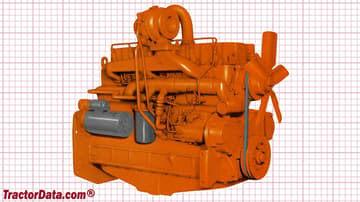

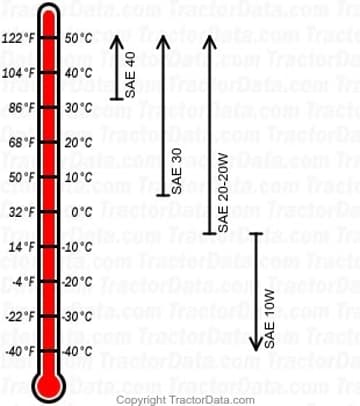

Allis-Chalmers 2900

turbocharged diesel

6-cylinder

liquid-cooled

Displacement

301 ci 4.9 L

Bore/Stroke

3.875x4.25 inches 98 x 108 mm

Air cleaner

dry

Compression

16.25:1

Rated RPM

2200

Firing order

1-5-3-6-2-4

Starter

electric

Starter volts

12

Coolant capacity

18 qts 17.0 L

Intake valve clearance

0.015 inches (hot) 0.381 mm

Exhaust valve clearance

0.015 inches (hot) 0.381 mm

Oil capacity

12 qts 11.4 L

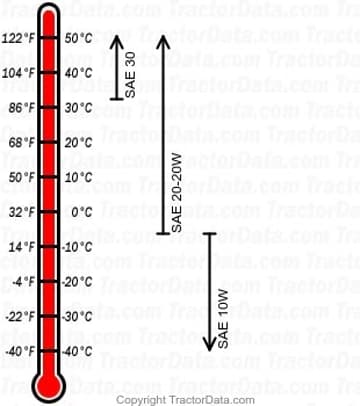

Allis-Chalmers G2800

LP gas

6-cylinder

liquid-cooled

Displacement

301 ci 4.9 L

Bore/Stroke

3.875x4.25 inches 98 x 108 mm

Air cleaner

dry

Compression

9:1

Rated RPM

2200

Firing order

1-5-3-6-2-4

Starter

electric

Starter volts

12

Coolant capacity

18 qts 17.0 L

Sparkplug gap

0.020 inches 0.508 mm

Point gap

0.016 inches 0.406 mm

Intake valve clearance

0.020 inches (hot) 0.508 mm

Exhaust valve clearance

0.025 inches (hot) 0.635 mm

Oil capacity

12 qts 11.4 L
