allis chalmers 5020
 | 1977 - 1985
Compact Utility tractorHinomoto built | 1977 - 1985 | Compact Utility tractor | Hinomoto built |
|---|---|---|---|---|
1977 - 1985 | ||||
Compact Utility tractor | ||||
Hinomoto built | ||||
1977 - 1985 | |
|---|---|
Compact Utility tractor | |
Hinomoto built |
Engine Detail | |
|---|---|
Toyosha S126 | |
diesel | |
2-cylinder | |
liquid-cooled | |
Displacement | 77.1 ci
1.3 L |
Bore/Stroke | 3.62x3.74 inches
92 x 95 mm |
Power | 25 hp
18.6 kW |
Air cleaner | single paper element |
Compression | 23.0:1 |
Rated RPM | 2500 |
Idle RPM | 750-2750 |
Firing order | 1-2 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 5.3 qts
5.0 L |

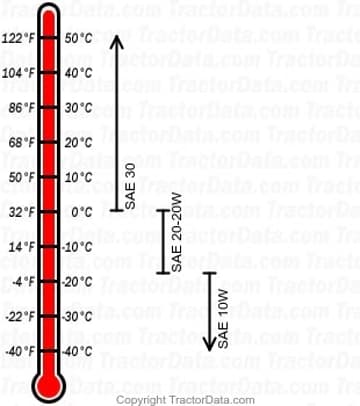

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
