allis chalmers 5030

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Allis Chalmers 5030 tractor photo
1979 - 1985 Compact Utility tractorHinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built
1979 - 1985
Compact Utility tractor
Hinomoto built
Nebraska Tractor Test 1271

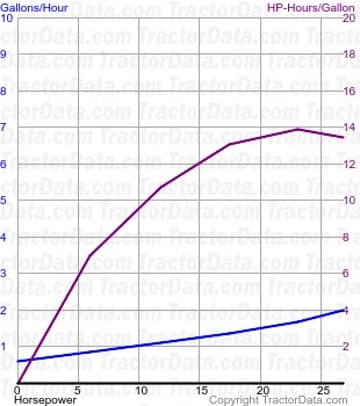

5030 fuel use from test 1271
5030 fuel use from test 1271
5030 fuel use from test 1271
5030 fuel use from test 1271
Nebraska Tractor Test 1271
Diesel 8-speed 2WD April 6 - 21, 1978 Link: Nebraska Tractor Test 1271 file
PTO performance
Power at rated engine speed
26.42 hp 19.7 kW
Fuel use
2.0 gal/hour 7.6 l/hour
Power at rated PTO speed
25.61 hp 19.1 kW
Fuel use
1.9 gal/hour 7.2 l/hour
Drawbar performance
Max power
22.47 hp 16.8 kW
Fuel use
1.9 gal/hour 7.2 l/hour
Gear 1H used for power test.
Max pull
3,389 lbs 1537 kg
Gear 3L used for pull test.
