allis chalmers 7060
 | 1974 - 1981
7000 SeriesRow-Crop tractor | 1974 - 1981 | 7000 Series | Row-Crop tractor |
|---|---|---|---|---|
1974 - 1981 | ||||
7000 Series | ||||
Row-Crop tractor | ||||
1974 - 1981 | |
|---|---|
7000 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1167: diesel Power Director 2WD | |
NTTL 1197: diesel Power Shift 2WD |

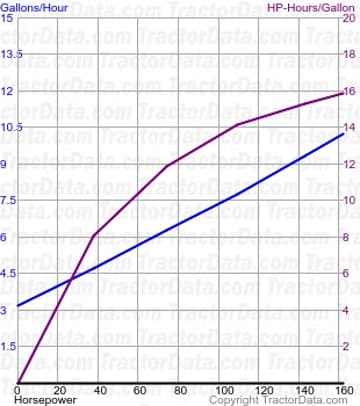

Nebraska Tractor Test 1167 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1167 | |
|---|---|
Diesel Power Director 2WD
October 30 - November 11, 1974
Link: Nebraska Tractor Test 1167 file | |
PTO performance | |
Power at rated engine speed | 161.51 hp
120.4 kW |
Fuel use | 10.2 gal/hour
38.6 l/hour |
Power at rated PTO speed | 160.44 hp
119.6 kW |
Fuel use | 10.0 gal/hour
37.9 l/hour |
Drawbar performance | |
Max power | 136.12 hp
101.5 kW |
Fuel use | 10.0 gal/hour
37.9 l/hour |
Gear 4-Slow-Hi used for power test. | |
Max pull | 17,370 lbs
7879 kg |
Gear 1-Slow-Hi used for pull test. | |

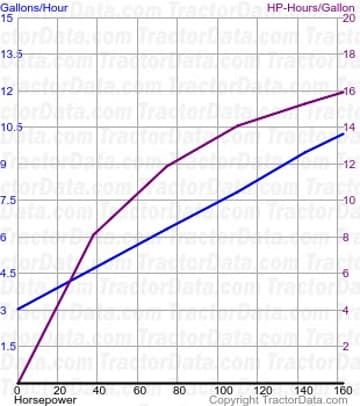

Nebraska Tractor Test 1197 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1197 | |
|---|---|
Diesel Power Shift 2WD
November 5 - 19, 1975
Link: Nebraska Tractor Test 1197 file | |
PTO performance | |
Power at rated engine speed | 161.42 hp
120.4 kW |
Fuel use | 10.2 gal/hour
38.6 l/hour |
Power at rated PTO speed | 161.65 hp
120.5 kW |
Fuel use | 10.1 gal/hour
38.2 l/hour |
Drawbar performance | |
Max power | 141.67 hp
105.6 kW |
Fuel use | 10.3 gal/hour
39.0 l/hour |
Gear 1-High used for power test. | |
Max pull | 17,851 lbs
8097 kg |
Gear 2-Low used for pull test. | |
