bad boy 4035
 | 2021 -
40 SeriesCompact Utility tractorTYM built | 2021 - | 40 Series | Compact Utility tractor | TYM built |
|---|---|---|---|---|---|
2021 - | |||||
40 Series | |||||
Compact Utility tractor | |||||
TYM built | |||||
2021 - | |
|---|---|
40 Series | |
Compact Utility tractor | |
TYM built |
Engine Detail | |
|---|---|
TYM A1700N4 | |
diesel | |
3-cylinder | |
liquid-cooled inline | |
Displacement | 104.7 ci
1.7 L |
Bore/Stroke | 3.46x3.70 inches
88 x 94 mm |
Power (gross) | 34.9 hp
26.0 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 4.5 qts
4.3 L |
Coolant capacity | 5.3 qts
5.0 L |

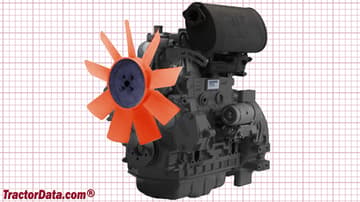

Bad Boy 4035 Engine | |
|---|---|
 |
