bolens h1704
 | 1985 - 1991
Sub-Compact Utility tractorIseki built | 1985 - 1991 | Sub-Compact Utility tractor | Iseki built |
|---|---|---|---|---|
1985 - 1991 | ||||
Sub-Compact Utility tractor | ||||
Iseki built | ||||
1985 - 1991 | |
|---|---|
Sub-Compact Utility tractor | |
Iseki built |
Engine Detail | |
|---|---|
Mitsubishi K3B | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 51.7 ci
0.8 L |
Bore/Stroke | 2.67x3.07 inches
68 x 78 mm |
Power | 17 hp
12.7 kW |
Air cleaner | dry element |
Pre-heating | glow plugs |
Compression | 22:1 |
Rated RPM | 2600 |
Torque | 34.7 lb-ft
47.1 Nm |
Torque RPM | 1800 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 4.4 qts
4.2 L |

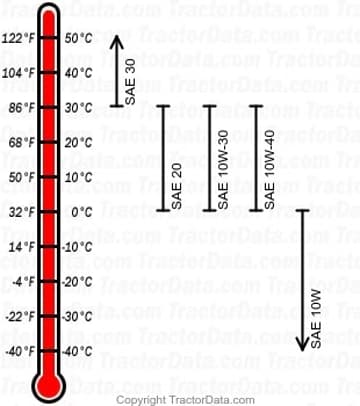

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.7 qts
2.6 L |
Oil change | 100 h |
