CaseIH 1455 XL
 | 1985 - 1996
55 SeriesRow-Crop tractor |
|---|---|
1985 - 1996 | |
55 Series | |
Row-Crop tractor | |
1985 - 1996 | |
|---|---|
55 Series | |
Row-Crop tractor |
Transmission options | |
|---|---|
12-speed fully synchronized | |
20-speed fully synchronized |
Transmission | |
|---|---|
Transmission | ZF |
Type | fully synchronized |
Gears | 12 forward and 5 reverse |
Oil capacity | 42.3 qts
40.0 L |

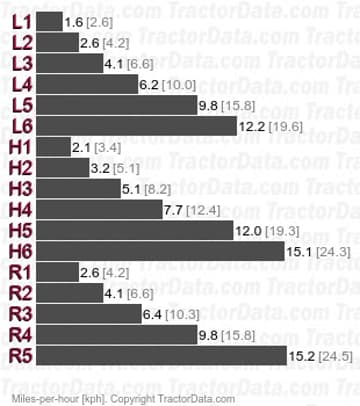

Six gears (1-6) in two ranges (low/high), plus reverse range. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Type | fully synchronized |
Gears | 20 forward and 9 reverse |

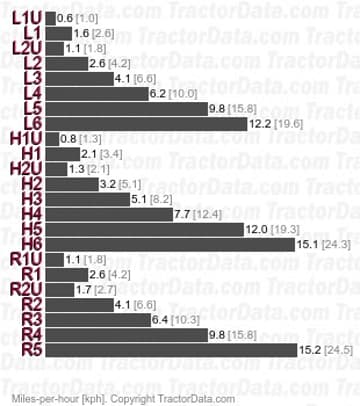

Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges. | |
Speeds | |
|---|---|
 |
