caseih 1594
 | 1985 - 1988
Utility tractor | 1985 - 1988 | Utility tractor |
|---|---|---|---|
1985 - 1988 | |||
Utility tractor | |||
1985 - 1988 | |
|---|---|
Utility tractor |
Tractor Tests | |
|---|---|
NTTL 1546: diesel synchromesh 2WD | |
NTTL 1547: diesel Hydra-Shift 2WD |

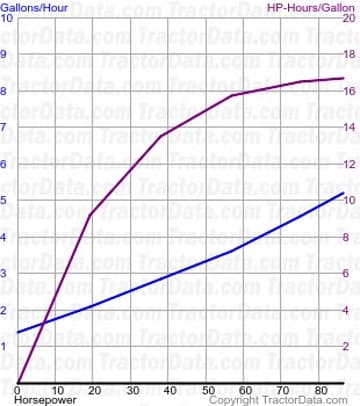

Nebraska Tractor Test 1546 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1546 | |
|---|---|
Diesel synchromesh 2WD
October 24 - November 2, 1984
Link: Nebraska Tractor Test 1546 file | |
PTO performance | |
Power at rated engine speed | 85.90 hp
64.1 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Power at rated PTO speed | 80.83 hp
60.3 kW |
Fuel use | 4.7 gal/hour
17.8 l/hour |
Drawbar performance | |
Max power | 72.17 hp
53.8 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Gear 7 used for power test. | |
Max pull | 8,331 lbs
3778 kg |
Gear 4 used for pull test. | |

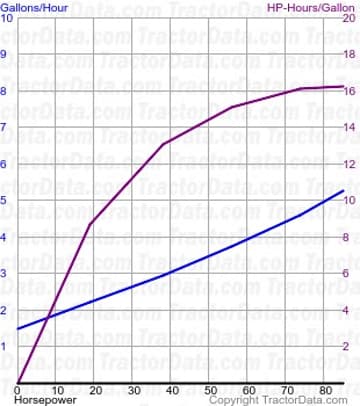

Nebraska Tractor Test 1547 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1547 | |
|---|---|
Diesel Hydra-Shift 2WD
October 23 - 30, 1984
Link: Nebraska Tractor Test 1547 file | |
PTO performance | |
Power at rated engine speed | 85.54 hp
63.8 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Power at rated PTO speed | 81.94 hp
61.1 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Drawbar performance | |
Max power | 69.37 hp
51.7 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Gear 7 used for power test. | |
Max pull | 8,198 lbs
3718 kg |
Gear 4 used for pull test. | |
