caseih 2130
 | 1988 - 1993
2100 SeriesOrchard/Vineyard tractorCarraro built | 1988 - 1993 | 2100 Series | Orchard/Vineyard tractor | Carraro built |
|---|---|---|---|---|---|
1988 - 1993 | |||||
2100 Series | |||||
Orchard/Vineyard tractor | |||||
Carraro built | |||||
1988 - 1993 | |
|---|---|
2100 Series | |
Orchard/Vineyard tractor | |
Carraro built |
Transmission options | |
|---|---|
8-speed partially synchronized | |
12-speed partially synchronized |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 8 forward and reverse |
Clutch | 280mm dry disc |
2WD Oil capacity | 38 qts
36.0 L |
4WD Oil capacity | 40.2 qts
38.0 L |
Four synchronized gears (1-4) in two ranges (I/II) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range. | |

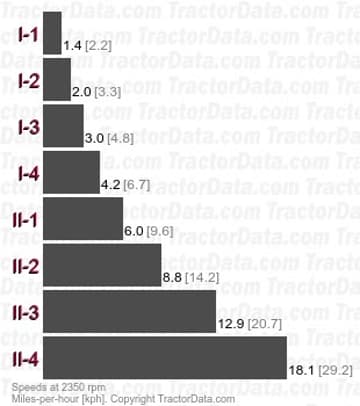

Speeds | |
|---|---|
With 13.6-28 rear tires. Reverse speeds are 15% slower than forward. | |
 |
Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 12 forward and reverse |
Clutch | 280mm dry disc |
2WD Oil capacity | 38 qts
36.0 L |
4WD Oil capacity | 40.2 qts
38.0 L |
Four synchronized gears (1-4) in three ranges (I/II/III) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range. | |

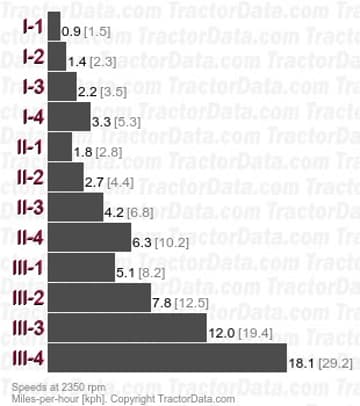

Speeds | |
|---|---|
With 13.6-28 rear tires. Reverse speeds are 15% slower than forward. | |
 |
Shift Pattern | |
|---|---|
 |
