caseih 2294

CaseIH 2294 tractor photo
1984 - 1988 Row-Crop tractor
1984 - 1988
Row-Crop tractor
1984 - 1988
Row-Crop tractor
1984 - 1988
Row-Crop tractor

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.
Nebraska Tractor Test 1526

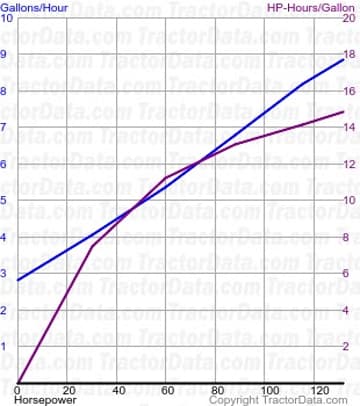

2294 fuel use from test 1526
2294 fuel use from test 1526
2294 fuel use from test 1526
2294 fuel use from test 1526
Nebraska Tractor Test 1526
Diesel 12 speed 2WD June 1 - 12, 1984 Link: Nebraska Tractor Test 1526 file
PTO performance
Power at rated engine speed
131.97 hp 98.4 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power
115.35 hp 86.0 kW
Fuel use
8.8 gal/hour 33.3 l/hour
Gear 3-2 used for power test.
Max pull
13,017 lbs 5904 kg
Gear 2-1 used for pull test.
