caseih 2394
 | 1984 - 1988
Row-Crop tractor | 1984 - 1988 | Row-Crop tractor |
|---|---|---|---|
1984 - 1988 | |||
Row-Crop tractor | |||
1984 - 1988 | |
|---|---|
Row-Crop tractor |
Series map: 229423942594154.0hp197.0hp217.0hp2394↓ 1984
Note: the CaseIH model 2394 is the same as the J.I. Case 2394. The following data is from the 2394 listing. |
|---|
Nebraska Tractor Test 1527 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1527 | |
|---|---|
Diesel 24-speed 2WD
June 7 - 23, 1984
Link: Nebraska Tractor Test 1527 file | |
PTO performance | |
Power at rated engine speed | 162.15 hp
120.9 kW |

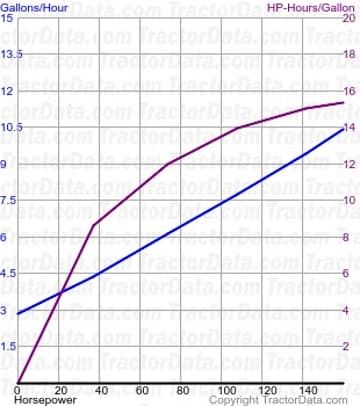

Fuel use | 10.5 gal/hour
39.7 l/hour |
Drawbar performance | |
Max power | 137.78 hp
102.7 kW |
Fuel use | 10.3 gal/hour
39.0 l/hour |
Gear 3-4 used for power test. | |
Max pull | 15497 lbs
7029 kg |
Gear 2-2 used for pull test. | |
