caseih 3220
 | 1994 - 1997
3200 Utility SeriesUtility tractor | 1994 - 1997 | 3200 Utility Series | Utility tractor |
|---|---|---|---|---|
1994 - 1997 | ||||
3200 Utility Series | ||||
Utility tractor | ||||
1994 - 1997 | |
|---|---|
3200 Utility Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed synchromesh | |
8-speed shuttle | |
16-speed partial power shift | |
16-speed synchromesh creeper |
Transmission | |
|---|---|
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | 11-inch dry cerametallic |
| 12-inch dry cerametallic (optional) |
2WD Oil capacity | 35.9 qts
34.0 L |
4WD Oil capacity | 38.6 qts
36.5 L |
Four gears (1-4) in two ranges (L/H) plus reverse range. | |

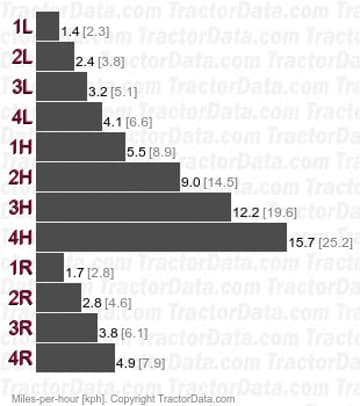

Speeds | |
|---|---|
With 13.6x28 rear tires. | |
 |
Transmission | |
|---|---|
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | 11-inch dry cerametallic |
| 12-inch dry cerametallic (optional) |
2WD Oil capacity | 35.9 qts
34.0 L |
4WD Oil capacity | 38.6 qts
36.5 L |

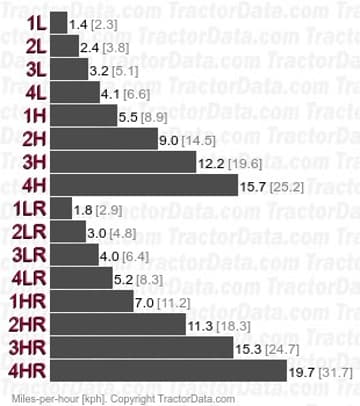

Speeds | |
|---|---|
With 13.6x28 rear tires. | |
 |
Transmission | |
|---|---|
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Clutch | 11-inch dry cerametallic |
| 12-inch dry cerametallic (optional) |
2WD Oil capacity | 35.9 qts
34.0 L |
4WD Oil capacity | 38.6 qts
36.5 L |
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch. | |

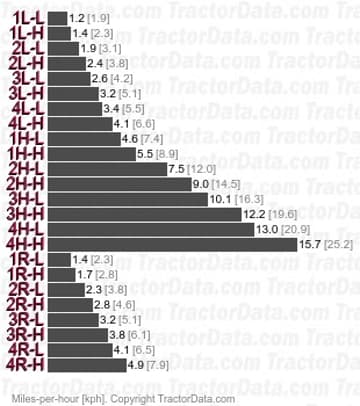

Speeds | |
|---|---|
With 13.6x28 rear tires. | |
 |

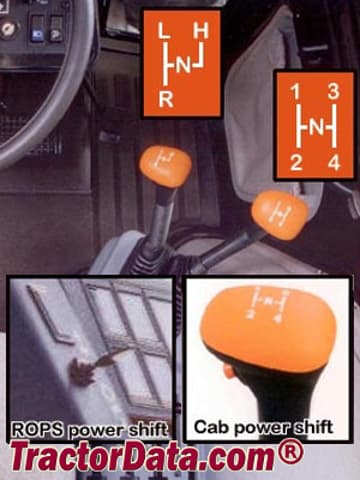

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | synchromesh creeper |
Gears | 16 forward and 8 reverse |
Clutch | 11-inch dry cerametallic |
| 12-inch dry cerametallic (optional) |
2WD Oil capacity | 35.9 qts
34.0 L |
4WD Oil capacity | 38.6 qts
36.5 L |
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes. | |

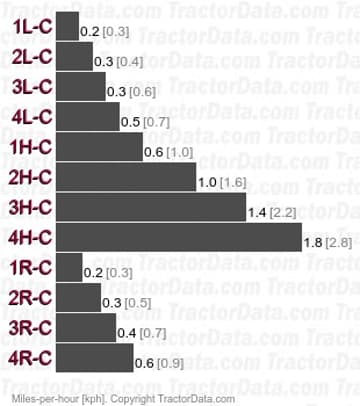

Speeds | |
|---|---|
With 13.6x28 rear tires. Speeds in direct mode same as regular synchromesh transmission. | |
 |
