caseih 3394

CaseIH 3394 tractor photo
1985 - 1987 Row-Crop tractor
1985 - 1987
Row-Crop tractor
1985 - 1987
Row-Crop tractor
1985 - 1987
Row-Crop tractor
Nebraska Tractor Test 1583

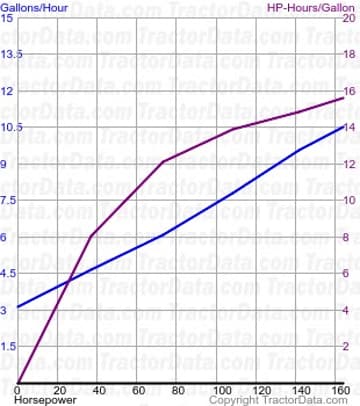

3394 fuel use from test 1583
3394 fuel use from test 1583
3394 fuel use from test 1583
3394 fuel use from test 1583
Nebraska Tractor Test 1583
Diesel 24-speed 4WD October 15 - 24, 1985 Link: Nebraska Tractor Test 1583 file
PTO performance
Power at rated engine speed
162.86 hp 121.4 kW
Fuel use
10.6 gal/hour 40.1 l/hour
Drawbar performance
Max power
141.17 hp 105.3 kW
Fuel use
10.4 gal/hour 39.4 l/hour
Gear 16 used for power test.
Max pull
17421 lbs 7902 kg
Gear 1-4 used for pull test.
