caseih 4694
 | 1984 - 1987
4WD 94 SeriesFour-wheel Drive (4WD) tractor | 1984 - 1987 | 4WD 94 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1984 - 1987 | ||||
4WD 94 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1984 - 1987 | |
|---|---|
4WD 94 Series | |
Four-wheel Drive (4WD) tractor |
Transmission | |
|---|---|
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Clutch | hydraulic wet disc |

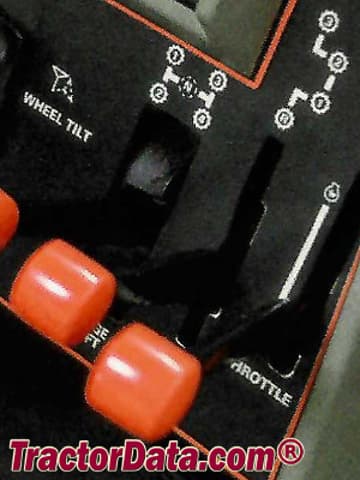

Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right. | |

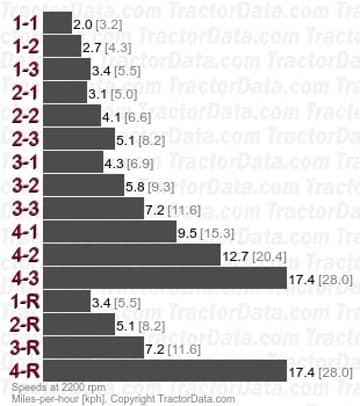

Speeds | |
|---|---|
With 23.1x30 tires. | |
 |
Shift Pattern | |
|---|---|
 |
