CaseIH 485
 | 1985 - 1991
85 Utility SeriesUtility tractor |
|---|---|
1985 - 1991 | |
85 Utility Series | |
Utility tractor | |
1985 - 1991 | |
|---|---|
85 Utility Series | |
Utility tractor |
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed partial power shift |

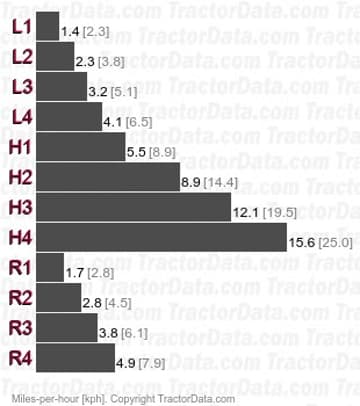

Transmission | |
|---|---|
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges. | |
Speeds | |
|---|---|
With 13.6x28 rear tires. | |
 |

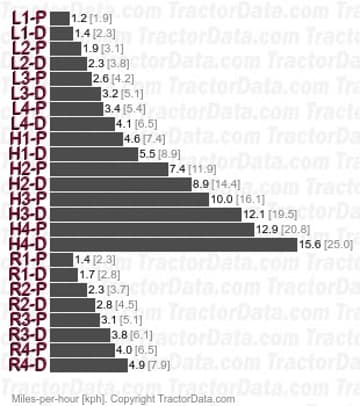

Transmission | |
|---|---|
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear. | |
Speeds | |
|---|---|
With 13.6x28 rear tires. | |
 |
