caseih 7120
 | 1987 - 1993
Magnum SeriesRow-Crop tractor | 1987 - 1993 | Magnum Series | Row-Crop tractor |
|---|---|---|---|---|
1987 - 1993 | ||||
Magnum Series | ||||
Row-Crop tractor | ||||
1987 - 1993 | |
|---|---|
Magnum Series | |
Row-Crop tractor |
Transmission options | |
|---|---|
18-speed full power shift | |
24-speed powershift with creeper |
Transmission | |
|---|---|
Manufacturer | CaseIH |
Type | full power shift |
Gears | 18 forward and 2 reverse |
Clutch | hydraulic wet disc |
Full-range power shift transmission operated with a single right-hand control lever. | |
Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |
Transmission | |
|---|---|
Manufacturer | CaseIH |
Type | powershift with creeper |
Gears | 24 forward and 3 reverse |
Clutch | hydraulic wet disc |

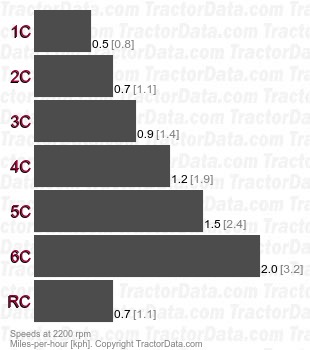

The optional creeper range adds an additional six forward gears and one reverse to the Magnum power shift transmission. | |
Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |
Transmission | |
|---|---|
Manufacturer | CaseIH |
Type | full power shift |
Gears | 18 forward and 4 reverse |
Clutch | hydraulic wet disc |
Starting with the 1990 model year an additional two reverse gears were added to the Magnum power shift transmission. | |
Shift Pattern | |
|---|---|
 |
