century c35
 | 2005 - 2006
Compact Utility tractorKukje built | 2005 - 2006 | Compact Utility tractor | Kukje built |
|---|---|---|---|---|
2005 - 2006 | ||||
Compact Utility tractor | ||||
Kukje built | ||||
2005 - 2006 | |
|---|---|
Compact Utility tractor | |
Kukje built |
Transmission | |||||
|---|---|---|---|---|---|
Type | partially synchronized | ||||
Gears | 12 forward and reverse | ||||
Oil capacity | 37 qts
35.0 L | ||||
Oil type | 10oF [-12oC]↑ : JDM J20C 70o↔-40oF [21o↔-40oC] : JDM J20D | 10oF [-12oC]↑ | : JDM J20C | 70o↔-40oF [21o↔-40oC] | : JDM J20D |
10oF [-12oC]↑ | : JDM J20C | ||||
70o↔-40oF [21o↔-40oC] | : JDM J20D | ||||
Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle. | |||||
10oF [-12oC]↑ | : JDM J20C |
|---|---|
70o↔-40oF [21o↔-40oC] | : JDM J20D |

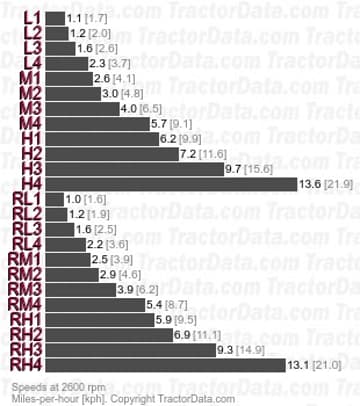

Speeds | |
|---|---|
With 12.4-24 rear tires. | |
 |
