Challenger 75D
 | 1996 - 1997
Agricultural Crawler tractor |
|---|---|
1996 - 1997 | |
Agricultural Crawler tractor | |
1996 - 1997 | |
|---|---|
Agricultural Crawler tractor |
Engine Detail | |
|---|---|
Caterpillar 3176C ATAAC | |
turbocharged intercooled diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 629 ci
10.3 L |
Bore/Stroke | 4.92x5.51 inches
125 x 140 mm |
Power (gross) | 330 hp
246.1 kW |
Air cleaner | dual paper elements with aspirator |
Pre-heating | ether injection |
| block heater |
Rated RPM | 2100 |
Starter volts | 12 |
Oil capacity | 32 qts
30.3 L |
Coolant capacity | 60 qts
56.8 L |

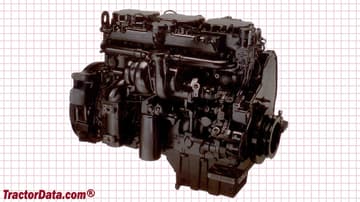

Challenger 75D Engine | |
|---|---|
 |
