cletrac hg
 | 1939 - 1951
Agricultural Crawler tractor | 1939 - 1951 | Agricultural Crawler tractor |
|---|---|---|---|
1939 - 1951 | |||
Agricultural Crawler tractor | |||
1939 - 1951 | |
|---|---|
Agricultural Crawler tractor |
Tractor Tests | |
|---|---|
NTTL 324: 113 gasoline 3-speed crawler | |
NTTL 434: 133 gasoline 3-speed crawler |

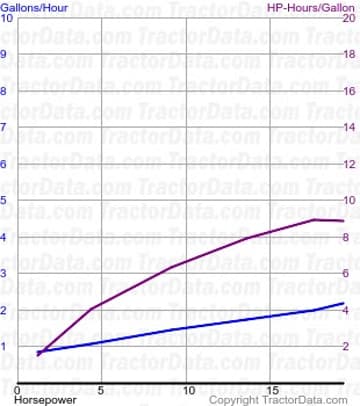

Nebraska Tractor Test 324 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 324 | |
|---|---|
113 gasoline 3-speed crawler
August 12, 1939 - August 30, 1938
Link: Nebraska Tractor Test 324 file | |
Belt power (max) | 19.4 hp
14.5 kW |
Belt fuel use (max) | 2.2 gal/hour
8.3 l/hour |
Drawbar performance | |
Max power | 14.01 hp
10.4 kW |
Fuel use | 7.0 gal/hour
26.5 l/hour |
Gear 2 used for power test. | |
Max pull | 2800 lbs
1270 kg |
Gear 1 used for pull test. | |

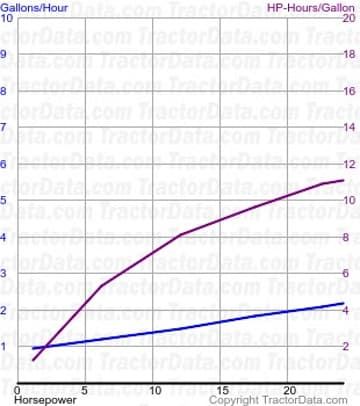

Nebraska Tractor Test 434 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 434 | |
|---|---|
133 gasoline 3-speed crawler
November 11 - 21, 1949
Link: Nebraska Tractor Test 434 file | |
Belt power (max) | 25.3 hp
18.9 kW |
Belt fuel use (max) | 2.3 gal/hour
8.7 l/hour |
Drawbar performance | |
Max power | 21.3 hp
15.9 kW |
Gear 2 used for power test. | |
Max pull | 3940 lbs
1787 kg |
Gear 1 used for pull test. | |
