craftsman lawn tractors 107 28034
 | 2010 - 2012
Riding lawn mowerSimplicity built | 2010 - 2012 | Riding lawn mower | Simplicity built |
|---|---|---|---|---|
2010 - 2012 | ||||
Riding lawn mower | ||||
Simplicity built | ||||
2010 - 2012 | |
|---|---|
Riding lawn mower | |
Simplicity built |
Engine Detail | |
|---|---|
Briggs & Stratton 219977 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 344 cc
21 ci |
Bore/Stroke | 3.44x2.26 inches
87 x 57 mm |
Power | 12.5 hp
9.3 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |

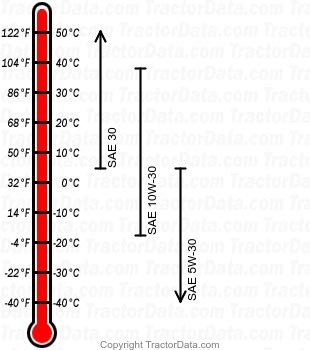

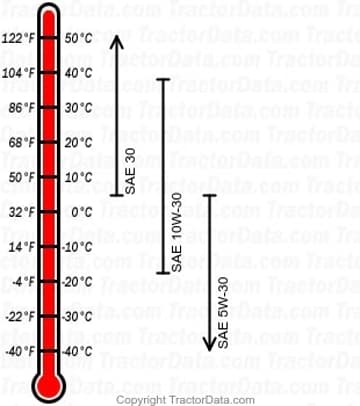

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.375 qts
1.3 L |
Oil change | 50 h |
