craftsman lawn tractors 247 28915
![]() | 2013
LT2500 SeriesLawn tractorMTD built | 2013 | LT2500 Series | Lawn tractor | MTD built |
|---|---|---|---|---|---|
2013 | |||||
LT2500 Series | |||||
Lawn tractor | |||||
MTD built | |||||
2013 | |
|---|---|
LT2500 Series | |
Lawn tractor | |
MTD built |
Engine Detail | |
|---|---|
Kohler Courage SV620-3215 | |
gasoline | |
1-cylinder 2-valve | |
air-cooled vertical-shaft | |
Displacement | 597 cc
36.43 ci |
Power (gross) | 22 hp
16.4 kW |
Fuel system | carburetor |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

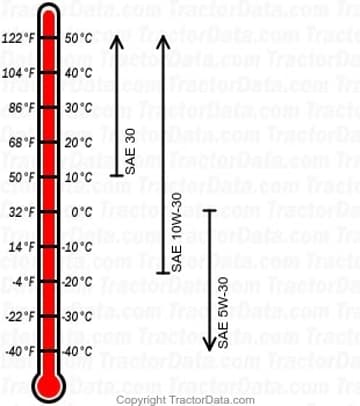

Engine Oil | |
|---|---|
![]() | |
Oil change | 50 h |
