craftsman lawn tractors 917 25003
 | 1990 - 1991
Garden tractorAYP built | 1990 - 1991 | Garden tractor | AYP built |
|---|---|---|---|---|
1990 - 1991 | ||||
Garden tractor | ||||
AYP built | ||||
1990 - 1991 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Onan | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft opposed twin | |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RS14YC |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.005 inches
0.127 mm |
Exhaust valve clearance | 0.013 inches
0.330 mm |

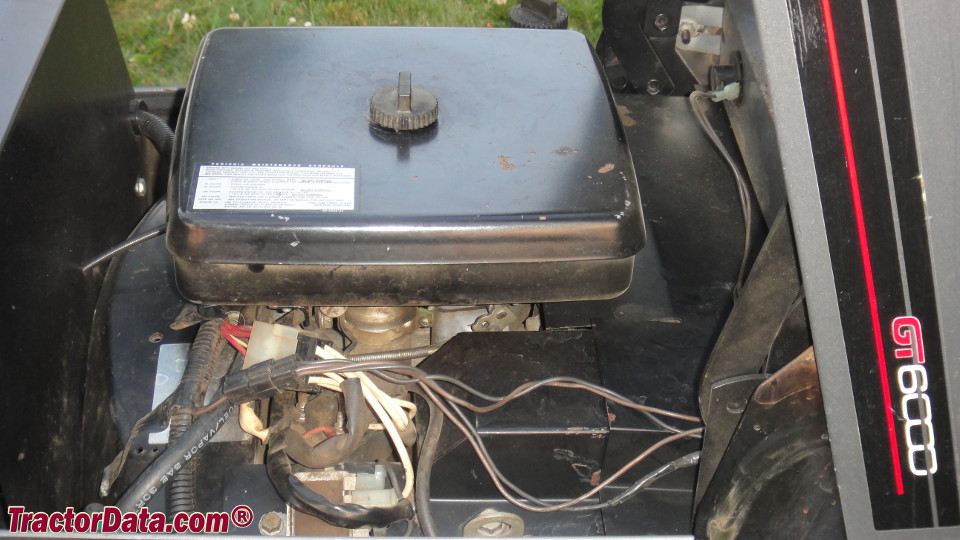

Craftsman 917.25003 Engine | |
|---|---|
 | |
Image courtesy of James Hansen |
