craftsman lawn tractors 917 25254
 | 1995 - 1996
Lawn tractorAYP built | 1995 - 1996 | Lawn tractor | AYP built |
|---|---|---|---|---|
1995 - 1996 | ||||
Lawn tractor | ||||
AYP built | ||||
1995 - 1996 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV15S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 426 cc
26 ci |
Bore/Stroke | 3.60x2.64 inches
91 x 67 mm |
Power (gross) | 14.5 hp
10.8 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.040 inches
1.016 mm |

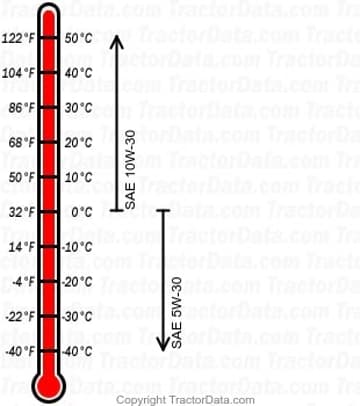

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.0 qts
1.9 L |
Oil change | 25 h |
