craftsman lawn tractors 917 25543

Craftsman 917.25543 tractor photo
1993 Lawn tractorAYP built
1993
Lawn tractor
AYP built
1993
Lawn tractor
AYP built
1993
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 286707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement
465 cc 28.4 ci
Bore/Stroke
3.44x3.06 inches 87 x 78 mm
Power
12.5 hp 9.3 kW
Starter
electric
Starter volts
12
Sparkplug
Champion RJ-19LM
Sparkplug gap
0.030 inches 0.762 mm
Engine Oil

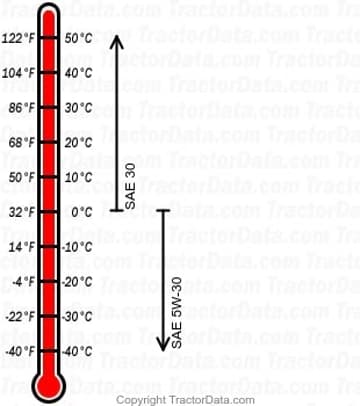

917.25543 gasoline engine oil chart
Oil capacity
1.5 qts 1.4 L
Oil change
25 h

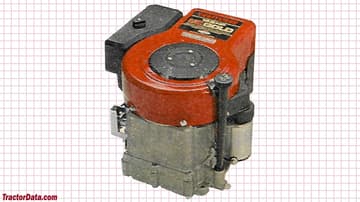

Craftsman 917.25543 Engine
Craftsman 917.25543 engine image
