craftsman lawn tractors 917 25545
 | 1993 - 1994
LT4000 SeriesLawn tractorAYP built | 1993 - 1994 | LT4000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
1993 - 1994 | |||||
LT4000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV14S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 398 cc
24.3 ci |
Bore/Stroke | 3.43x2.64 inches
87 x 67 mm |
Power | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |

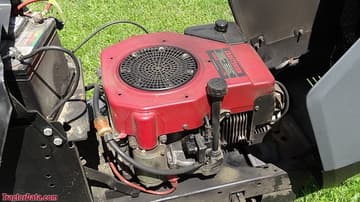

Craftsman 917.25545 Engine | |
|---|---|
 | |
Image courtesy of Larry Long |
