craftsman lawn tractors 917 25554
 | 1991
LT 4000 SeriesLawn tractorAYP built | 1991 | LT 4000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
1991 | |||||
LT 4000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Vanguard 303777 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 480 cc
29.3 ci |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | 2.68x2.60 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.75 qts
1.7 L |
Oil change | 50 h |

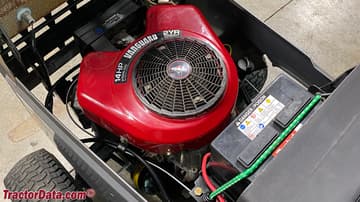

Craftsman 917.25554 Engine | |
|---|---|
 | |
Image courtesy of Christopher Antonellis |
