craftsman lawn tractors 917 25645
 | 1996
Lawn tractorAYP built | 1996 | Lawn tractor | AYP built |
|---|---|---|---|---|
1996 | ||||
Lawn tractor | ||||
AYP built | ||||
1996 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 289707 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power | 12.5 hp
9.3 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ19LM |
Sparkplug gap | 0.030 inches
0.762 mm |

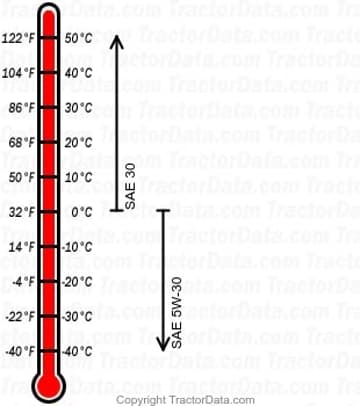

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |

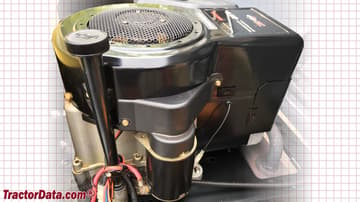

Craftsman 917.25645 Engine | |
|---|---|
 | |
Image courtesy of Dan La Pointe |
