craftsman lawn tractors 917 25763
 | 1994
LT4000 SeriesLawn tractorAYP built | 1994 | LT4000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
1994 | |||||
LT4000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 28M707 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 13 hp
9.7 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ19LM |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |

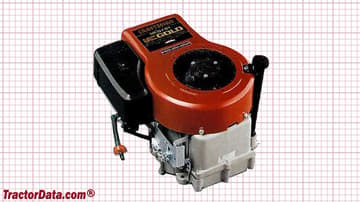

Craftsman 917.25763 Engine | |
|---|---|
 |
