craftsman lawn tractors 917 25771
 | 1994
GT6000 SeriesGarden tractorAYP built | 1994 | GT6000 Series | Garden tractor | AYP built |
|---|---|---|---|---|---|
1994 | |||||
GT6000 Series | |||||
Garden tractor | |||||
AYP built | |||||
1994 | |
|---|---|
GT6000 Series | |
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 422707 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft opposed-twin | |
Displacement | 693 cc
42.33 ci |
Bore/Stroke | 3.44x2.28 inches
87 x 58 mm |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.005 inches
0.127 mm |
Exhaust valve clearance | 0.008 inches
0.203 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |

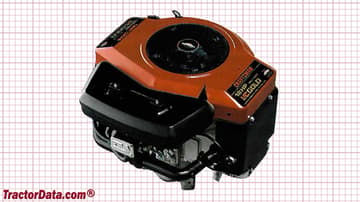

Craftsman 917.25771 Engine | |
|---|---|
 |
