craftsman lawn tractors 917 27265
![]() | 2003
LT 1000 SeriesLawn tractorAYP built | 2003 | LT 1000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2003 | |||||
LT 1000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2003 | |
|---|---|
LT 1000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 31C707 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.57x3.06 inches
91 x 78 mm |
Power (gross) | 17 hp
12.7 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

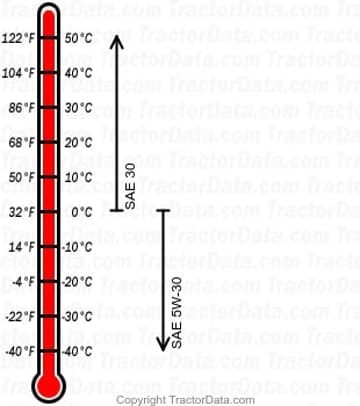

Engine Oil | |
|---|---|
![]() | |
Oil capacity | 1.5 qts
1.4 L |
