craftsman lawn tractors 917 27347
 | 2003
DLT 3000 SeriesLawn tractorAYP built | 2003 | DLT 3000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2003 | |||||
DLT 3000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2003 | |
|---|---|
DLT 3000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV674 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 671 cc
41 ci |
Bore/Stroke | 3.15x2.64 inches
80 x 67 mm |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

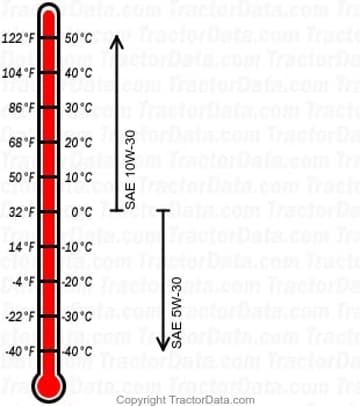

Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |
