craftsman lawn tractors 917 27349
 | 2004
DLT 3000 SeriesLawn tractorAYP built | 2004 | DLT 3000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2004 | |||||
DLT 3000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2004 | |
|---|---|
DLT 3000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Honda GXV530 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 530 cc
32.34 ci |
Bore/Stroke | 3.031x2.244 inches
77 x 57 mm |
Power (gross) | 16.5 hp
12.3 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | NGK BPR5ES |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.11 qts
1.1 L |

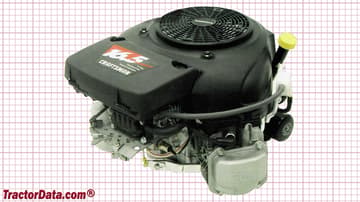

Craftsman 917.27349 Engine | |
|---|---|
 |
