craftsman lawn tractors 917 27622
 | 2006
GT5000 SeriesGarden tractorAYP built | 2006 | GT5000 Series | Garden tractor | AYP built |
|---|---|---|---|---|---|
2006 | |||||
GT5000 Series | |||||
Garden tractor | |||||
AYP built | |||||
2006 | |
|---|---|
GT5000 Series | |
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 40H777 | |
gasoline | |
2-cylinder | |
air-cooled | |
Displacement | 656 cc
40.03 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power (gross) | 22 hp
16.4 kW |
Air cleaner | paper cartridge |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion QC12YC |
Sparkplug gap | 0.040 inches
1.016 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |

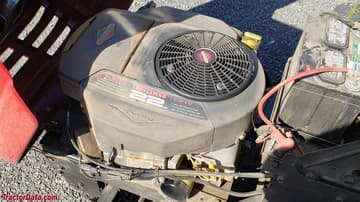

Craftsman 917.27622 Engine | |
|---|---|
 | |
Image courtesy of Brian Jennings |
