craftsman lawn tractors 917 27635
 | 2005
GT 5000 SeriesGarden tractorAYP built | 2005 | GT 5000 Series | Garden tractor | AYP built |
|---|---|---|---|---|---|
2005 | |||||
GT 5000 Series | |||||
Garden tractor | |||||
AYP built | |||||
2005 | |
|---|---|
GT 5000 Series | |
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV730 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 721 cc
44 ci |
Bore/Stroke | 3.3x2.6 inches
84 x 66 mm |
Power (gross) | 25 hp
18.6 kW |
Air cleaner | paper cartridge with foam pre-cleaner |
Compression | 9:1 |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |

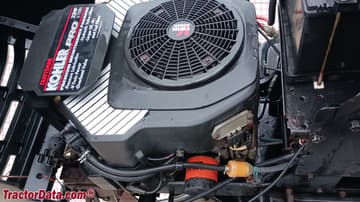

Craftsman 917.27635 Engine | |
|---|---|
 | |
Image courtesy of D. Williams |
