craftsman lawn tractors 917 27684
 | 2006
FS5500 SeriesLawn tractorAYP built | 2006 | FS5500 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2006 | |||||
FS5500 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 445677 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.3x2.6 inches
84 x 66 mm |
Power (gross) | 24 hp
17.9 kW |
Air cleaner | paper cartridge |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion QC12YC |
Sparkplug gap | 0.040 inches
1.016 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |

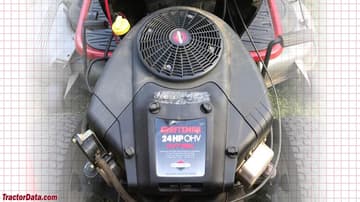

Craftsman 917.27684 Engine | |
|---|---|
 |
