farmall 1566
 | 1974 - 1976
66 SeriesRow-Crop tractor | 1974 - 1976 | 66 Series | Row-Crop tractor |
|---|---|---|---|---|
1974 - 1976 | ||||
66 Series | ||||
Row-Crop tractor | ||||
1974 - 1976 | |
|---|---|
66 Series | |
Row-Crop tractor |
Series map: 14681566147.8hp*183.0hp
Note: the Farmall model 1566 is the same as the International Harvester 1566. The following data is from the 1566 listing. |
|---|
Nebraska Tractor Test 1174 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1174 | |
|---|---|
Diesel Torque Amplifier 2WD
May 3 - 15, 1975
Link: Nebraska Tractor Test 1174 file | |

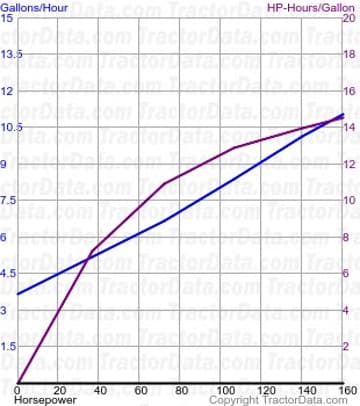

PTO performance | |
Power at rated engine speed | 161.01 hp
120.1 kW |
Fuel use | 11.1 gal/hour
42.0 l/hour |
Power at rated PTO speed | 162.31 hp
121.0 kW |
Fuel use | 10.0 gal/hour
37.9 l/hour |
Drawbar performance | |
Max power | 137.00 hp
102.2 kW |
Fuel use | 10.9 gal/hour
41.3 l/hour |
Max pull | 15774 lbs
7155 kg |
