farmall 400
 | 1954 - 1956
Row-Crop tractor | 1954 - 1956 | Row-Crop tractor |
|---|---|---|---|
1954 - 1956 | |||
Row-Crop tractor | |||
1954 - 1956 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 532: gasoline Torque Amplifier 2WD | |
NTTL 534: diesel Torque Amplifier 2WD | |
NTTL 571: LP gas Torque Amplifier 2WD |

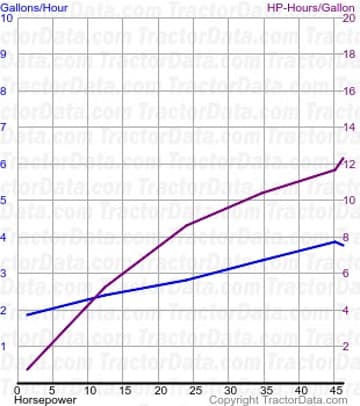

Nebraska Tractor Test 532 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 532 | |
|---|---|
Gasoline Torque Amplifier 2WD
March 28 - April 4, 1955
Link: Nebraska Tractor Test 532 file | |
Belt power (max) | 50.78 hp
37.9 kW |
Belt fuel use (max) | 4.4 gal/hour
16.7 l/hour |
Drawbar performance | |
Max power | 45.34 hp
33.8 kW |
Gear 3-Direct used for power test. | |
Max pull | 6,508 lbs
2952 kg |
Gear 1-Direct used for pull test. | |

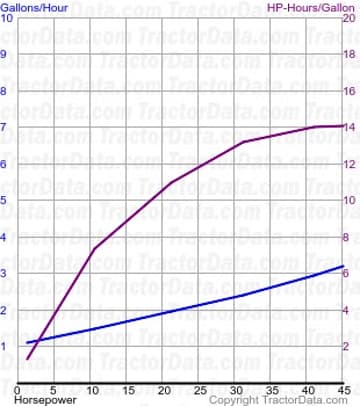

Nebraska Tractor Test 534 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 534 | |
|---|---|
Diesel Torque Amplifier 2WD
April 8 - 16, 1955
Link: Nebraska Tractor Test 534 file | |
Belt power (max) | 46.73 hp
34.8 kW |
Belt fuel use (max) | 3.4 gal/hour
12.9 l/hour |
Drawbar performance | |
Max power | 43.22 hp
32.2 kW |
Gear 3-Direct used for power test. | |
Max pull | 6,479 lbs
2938 kg |
Gear 1-TA used for pull test. | |

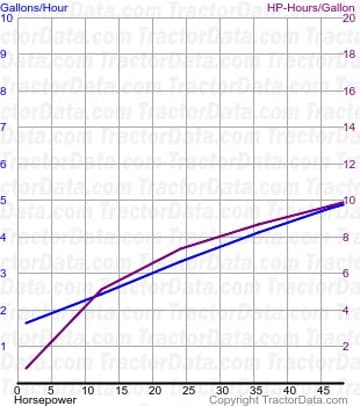

Nebraska Tractor Test 571 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 571 | |
|---|---|
LP gas Torque Amplifier 2WD
May 7 - 28, 1956
Link: Nebraska Tractor Test 571 file | |
Belt power (max) | 52.36 hp
39.0 kW |
Belt fuel use (max) | 5.8 gal/hour
22.0 l/hour |
Drawbar performance | |
Max power | 48.12 hp
35.9 kW |
Gear 3-Direct used for power test. | |
Max pull | 6,663 lbs
3022 kg |
Gear 1-TA used for pull test. | |
