Farmall 460
 | 1958 - 1963
Row-Crop tractor |
|---|---|
1958 - 1963 | |
Row-Crop tractor | |
1958 - 1963 | |
|---|---|
Row-Crop tractor |
Transmission options | |
|---|---|
5-speed | |
10-speed |
Transmission | |||
|---|---|---|---|
Transmission | sliding gear | ||
Gears | 5 forward and 1 reverse | ||
Oil capacity | 40 qts
37.9 L | ||
Oil type | IH Hy-Tran | IH Hy-Tran | |
IH Hy-Tran | |||
Tractor must be stopped and clutch used to shift gears. An option "heavy tillage gear" was available to replace the third speed in the transmission. Serial number suffix "CC" indicates this option. | |||
IH Hy-Tran |
|---|

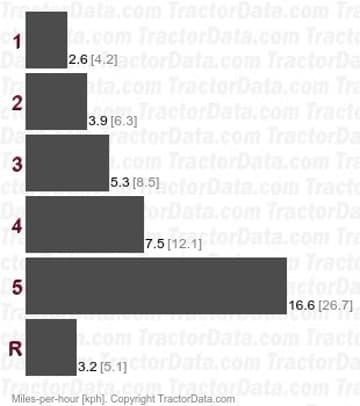

Speeds | |
|---|---|
with 12.4-38 rear tires. | |
 |

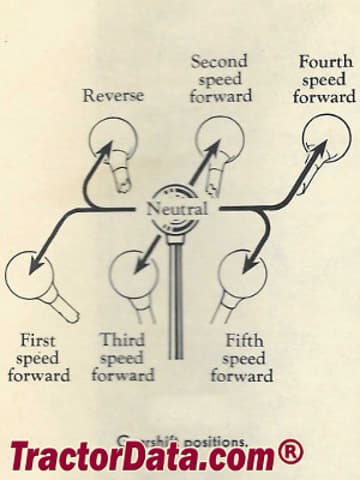

Shift Pattern | |
|---|---|
 |
Transmission | |||
|---|---|---|---|
Transmission | Torque Amplifier | ||
Gears | 10 forward and 2 reverse | ||
Oil capacity | 40 qts
37.9 L | ||
Oil type | IH Hy-Tran | IH Hy-Tran | |
IH Hy-Tran | |||
The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 460 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it. | |||
IH Hy-Tran |
|---|

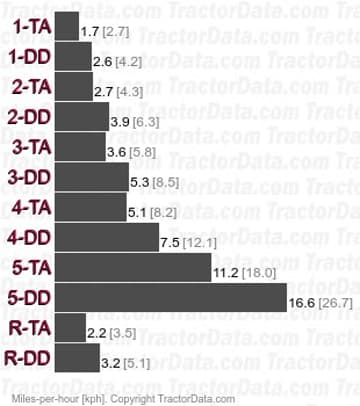

Speeds | |
|---|---|
With 12.4-38 rear tires. | |
 |
