farmall 706

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Farmall 706 tractor photo
1963 - 1967 Row-Crop tractor
1963 - 1967
Row-Crop tractor
1963 - 1967
Row-Crop tractor
1963 - 1967
Row-Crop tractor
Tractor Tests
NTTL 856: 282 diesel Torque Amplifier 2WD
NTTL 858: 263 gasoline Torque Amplifier 2WD
NTTL 955: 310 diesel Torque Amplifier 2WD
NTTL 956: 291 LP gas Torque Amplifier 2WD
NTTL 957: 291 gas Torque Amplifier 2WD
Nebraska Tractor Test 856

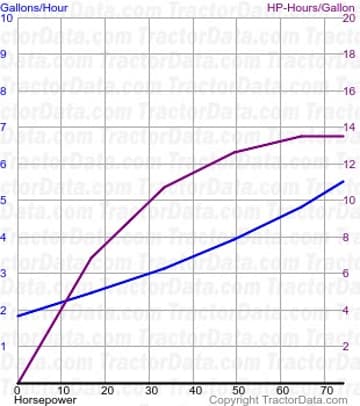

706 fuel use from test 856
706 fuel use from test 856
706 fuel use from test 856
706 fuel use from test 856
Nebraska Tractor Test 856
282 diesel Torque Amplifier 2WD October 21 - November 8, 1963 Link: Nebraska Tractor Test 856 file
PTO performance
Power at rated engine speed
72.42 hp 54.0 kW
Fuel use
5.5 gal/hour 20.8 l/hour
Power at rated PTO speed
67.26 hp 50.2 kW
Fuel use
5.1 gal/hour 19.3 l/hour
Drawbar performance
Max power
65.12 hp 48.6 kW
Fuel use
5.4 gal/hour 20.4 l/hour
Gear 2-High-TA used for power test.
Max pull
8,026 lbs 3640 kg
Gear 3-Low-TA used for pull test.
Nebraska Tractor Test 858

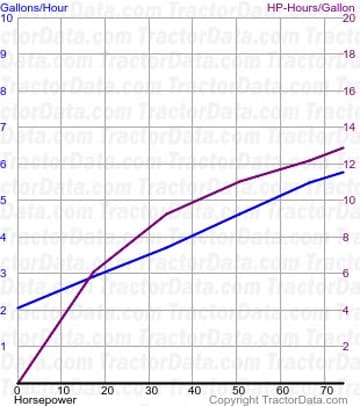

706 fuel use from test 858
706 fuel use from test 858
706 fuel use from test 858
706 fuel use from test 858
Nebraska Tractor Test 858
263 gasoline Torque Amplifier 2WD October 30 - November 20, 1963 Link: Nebraska Tractor Test 858 file
PTO performance
Power at rated engine speed
73.82 hp 55.0 kW
Fuel use
5.7 gal/hour 21.6 l/hour
Power at rated PTO speed
68.77 hp 51.3 kW
Fuel use
5.2 gal/hour 19.7 l/hour
Drawbar performance
Max power
66.18 hp 49.4 kW
Fuel use
5.9 gal/hour 22.3 l/hour
Gear 2-High-TA used for power test.
Max pull
7,976 lbs 3617 kg
Gear 3-Low-TA used for pull test.
Nebraska Tractor Test 955

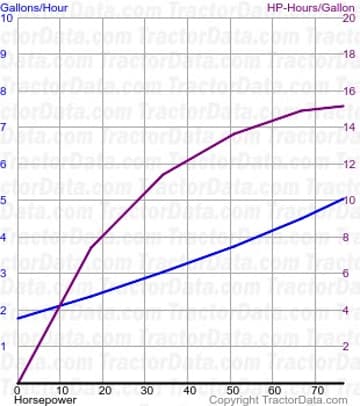

706 fuel use from test 955
706 fuel use from test 955
706 fuel use from test 955
706 fuel use from test 955
Nebraska Tractor Test 955
310 diesel Torque Amplifier 2WD November 14 - 28, 1966 Link: Nebraska Tractor Test 955 file
PTO performance
Power at rated engine speed
76.09 hp 56.7 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Power at rated PTO speed
71.84 hp 53.6 kW
Fuel use
4.7 gal/hour 17.8 l/hour
Drawbar performance
Max power
67.46 hp 50.3 kW
Fuel use
5.0 gal/hour 18.9 l/hour
Gear 1-High-Direct used for power test.
Max pull
8,416 lbs 3817 kg
Gear 3-Low-TA used for pull test.
Nebraska Tractor Test 956

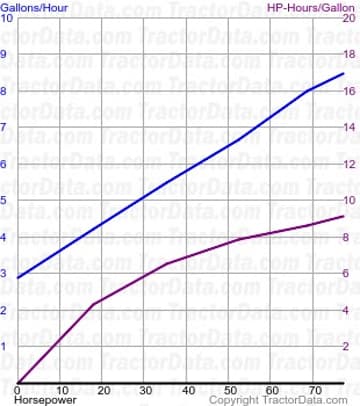

706 fuel use from test 956
706 fuel use from test 956
706 fuel use from test 956
706 fuel use from test 956
Nebraska Tractor Test 956
291 LP gas Torque Amplifier 2WD November 14 - 28, 1966 Link: Nebraska Tractor Test 956 file
PTO performance
Power at rated engine speed
76.3 hp 56.9 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Power at rated PTO speed
70.98 hp 52.9 kW
Fuel use
7.6 gal/hour 28.8 l/hour
Drawbar performance
Max power
66.53 hp 49.6 kW
Fuel use
8.3 gal/hour 31.4 l/hour
Gear 1-High-Direct used for power test.
Max pull
8,387 lbs 3804 kg
Gear 3-Lo-TA used for pull test.
Nebraska Tractor Test 957

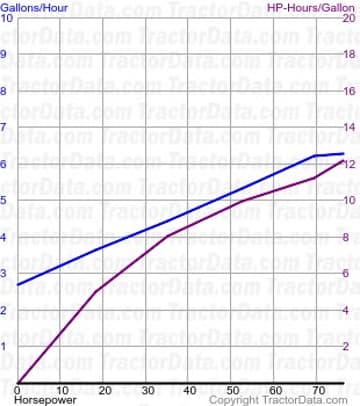

706 fuel use from test 957
706 fuel use from test 957
706 fuel use from test 957
706 fuel use from test 957
Nebraska Tractor Test 957
291 gas Torque Amplifier 2WD November 16 - 28, 1966 Link: Nebraska Tractor Test 957 file
PTO performance
Power at rated engine speed
76.56 hp 57.1 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Power at rated PTO speed
71.8 hp 53.5 kW
Fuel use
5.8 gal/hour 22.0 l/hour
Drawbar performance
Max power
65.67 hp 49.0 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Gear 1-High-DD used for power test.
Max pull
8,387 lbs 3804 kg
Gear 3-Low-TA used for pull test.
