farmall 766
 | 66 SeriesRow-Crop tractor | 66 Series | Row-Crop tractor |
|---|---|---|---|
66 Series | |||
Row-Crop tractor | |||
66 Series | |
|---|---|
Row-Crop tractor |
Series map: 76696688.6hp*91.0hp
Note: the Farmall model 766 is the same as the International Harvester 766. The following data is from the 766 listing. |
|---|
Tractor Tests | |
|---|---|
NTTL 1094: gasoline Torque Amplifier 2WD | |
NTTL 1117: diesel Torque Amplifier 2WD |

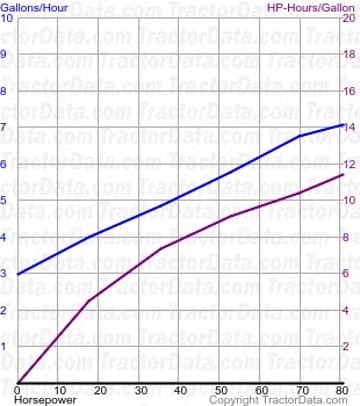

Nebraska Tractor Test 1094 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1094 | |
|---|---|
Gasoline Torque Amplifier 2WD
4/20/1972
Link: Nebraska Tractor Test 1094 file | |
PTO performance | |
Power at rated engine speed | 79.73 hp
59.5 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Power at rated PTO speed | 73.96 hp
55.2 kW |
Fuel use | 6.3 gal/hour
23.8 l/hour |
Drawbar performance | |
Max power | 71.32 hp
53.2 kW |
Fuel use | 7.3 gal/hour
27.6 l/hour |
Gear 1-Hi-TA used for power test. | |
Max pull | 8,841 lbs
4010 kg |
Gear 2-Lo-Direct used for pull test. | |

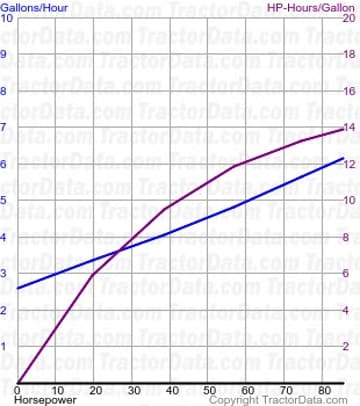

Nebraska Tractor Test 1117 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1117 | |
|---|---|
Diesel Torque Amplifier 2WD
November 10 - December 5, 1972
Link: Nebraska Tractor Test 1117 file | |
PTO performance | |
Power at rated engine speed | 85.45 hp
63.7 kW |
Fuel use | 6.2 gal/hour
23.5 l/hour |
Power at rated PTO speed | 85.66 hp
63.9 kW |
Fuel use | 5.8 gal/hour
22.0 l/hour |
Drawbar performance | |
Max power | 73.37 hp
54.7 kW |
Fuel use | 6.1 gal/hour
23.1 l/hour |
Gear 1-Hi-TA used for power test. | |
Max pull | 9,236 lbs
4189 kg |
Gear 2-Lo-Direct used for pull test. | |
