farmall 806

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Farmall 806 tractor photo
1963 - 1967 Row-Crop tractor
1963 - 1967
Row-Crop tractor
1963 - 1967
Row-Crop tractor
1963 - 1967
Row-Crop tractor
Tractor Tests
NTTL 857: diesel Torque Amplifier 2WD
NTTL 859: gasoline Torque Amplifier 2WD
NTTL 861: LP-gas Torque Amplifier 2WD
Nebraska Tractor Test 857

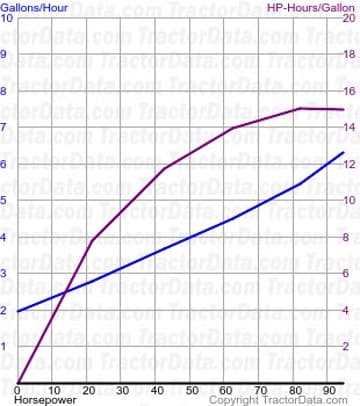

806 fuel use from test 857
806 fuel use from test 857
806 fuel use from test 857
806 fuel use from test 857
Nebraska Tractor Test 857
Diesel Torque Amplifier 2WD October 22 - 30, 1963 Link: Nebraska Tractor Test 857 file
PTO performance
Power at rated engine speed
94.93 hp 70.8 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Power at rated PTO speed
89.04 hp 66.4 kW
Fuel use
5.9 gal/hour 22.3 l/hour
Drawbar performance
Max power
84.77 hp 63.2 kW
Fuel use
6.4 gal/hour 24.2 l/hour
Gear 2H-TA used for power test.
Max pull
9,182 lbs 4164 kg
Gear 3L-TA used for pull test.
Nebraska Tractor Test 859

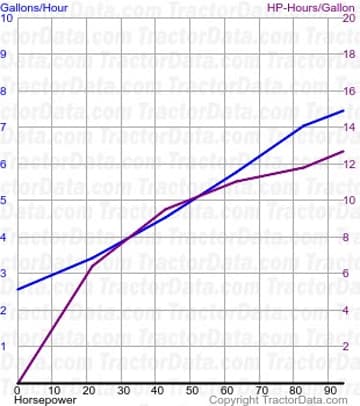

806 fuel use from test 859
806 fuel use from test 859
806 fuel use from test 859
806 fuel use from test 859
Nebraska Tractor Test 859
Gasoline Torque Amplifier 2WD 10/28/1963 Link: Nebraska Tractor Test 859 file
PTO performance
Power at rated engine speed
93.27 hp 69.6 kW
Fuel use
7.4 gal/hour 28.0 l/hour
Power at rated PTO speed
83.99 hp 62.6 kW
Fuel use
6.6 gal/hour 25.0 l/hour
Drawbar performance
Max power
80.70 hp 60.2 kW
Fuel use
7.5 gal/hour 28.4 l/hour
Gear 2H-TA used for power test.
Max pull
9,003 lbs 4083 kg
Gear 3L-TA used for pull test.
Nebraska Tractor Test 861

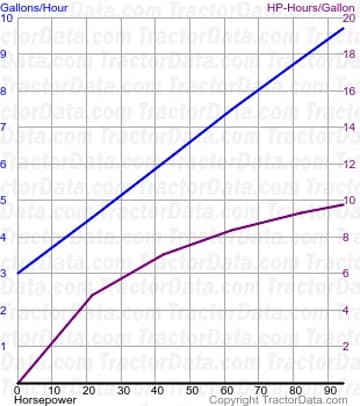

806 fuel use from test 861
806 fuel use from test 861
806 fuel use from test 861
806 fuel use from test 861
Nebraska Tractor Test 861
LP-gas Torque Amplifier 2WD November 6 - 26, 1963 Link: Nebraska Tractor Test 861 file
PTO performance
Power at rated engine speed
93.42 hp 69.7 kW
Fuel use
9.6 gal/hour 36.3 l/hour
Power at rated PTO speed
83.20 hp 62.0 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Drawbar performance
Max power
81.53 hp 60.8 kW
Fuel use
9.5 gal/hour 36.0 l/hour
Gear 2H-TA used for power test.
Max pull
9,072 lbs 4115 kg
Gear 3L-TA used for pull test.
