farmall 826

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Farmall 826 tractor photo
1969 - 1971 Row-Crop tractor
1969 - 1971
Row-Crop tractor
1969 - 1971
Row-Crop tractor
1969 - 1971
Row-Crop tractor
Tractor Tests
NTTL 1045: D358 diesel Torque Amplifier 2WD
NTTL 1046: D358 diesel hydrostatic 2WD
Nebraska Tractor Test 1045

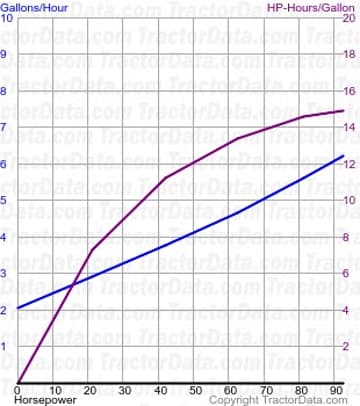

826 fuel use from test 1045
826 fuel use from test 1045
826 fuel use from test 1045
826 fuel use from test 1045
Nebraska Tractor Test 1045
D358 diesel Torque Amplifier 2WD June 3 - 27, 1970 Link: Nebraska Tractor Test 1045 file
PTO performance
Power at rated engine speed
92.19 hp 68.7 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Power at rated PTO speed
85.34 hp 63.6 kW
Fuel use
1.0 gal/hour 3.8 l/hour
Drawbar performance
Max power
78.92 hp 58.9 kW
Fuel use
6.2 gal/hour 23.5 l/hour
Gear 1-Hi-TA used for power test.
Max pull
9,631 lbs 4368 kg
Gear 3-Lo-TA used for pull test.
Nebraska Tractor Test 1046

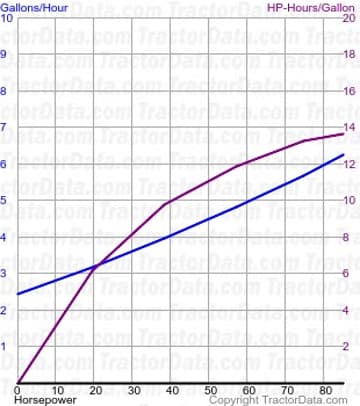

826 fuel use from test 1046
826 fuel use from test 1046
826 fuel use from test 1046
826 fuel use from test 1046
Nebraska Tractor Test 1046
D358 diesel hydrostatic 2WD June 6 - 27, 1970 Link: Nebraska Tractor Test 1046 file
PTO performance
Power at rated engine speed
84.66 hp 63.1 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Power at rated PTO speed
79.00 hp 58.9 kW
Fuel use
5.6 gal/hour 21.2 l/hour
Drawbar performance
Max power
61.39 hp 45.8 kW
Fuel use
6.1 gal/hour 23.1 l/hour
Max pull
8,780 lbs 3982 kg
