TractorData Logo
TractorData

ferguson to 35

OverviewEngineTransmissionDimensionsTestsAttachmentsPhotos
Ferguson TO-35 tractor photo
1954 - 1960 Utility tractor
1954 - 1960
Utility tractor
1954 - 1960
Utility tractor
1954 - 1960
Utility tractor
Tractor Tests
NTTL 564: gasoline 6-speed 2WD
NTTL 690: diesel 6-speed 2WD
Nebraska Tractor Test 564

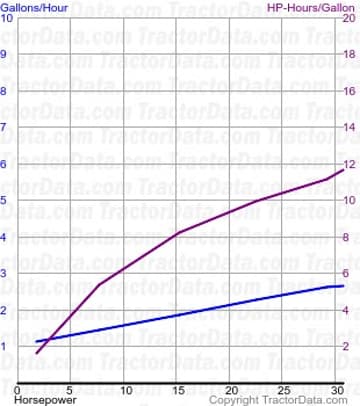

TO-35 fuel use from test 564
TO-35 fuel use from test 564
TO-35 fuel use from test 564
TO-35 fuel use from test 564
Nebraska Tractor Test 564
Gasoline 6-speed 2WD October 10 - 17, 1955 Link: Nebraska Tractor Test 564 file
Belt power (max)
33.24 hp 24.8 kW
Belt fuel use (max)
3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power
30.51 hp 22.8 kW
Gear 4 used for power test.
Max pull
3,400 lbs 1542 kg
Gear 3 used for pull test.
Nebraska Tractor Test 690

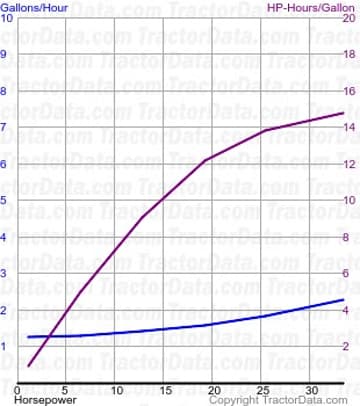

TO-35 fuel use from test 690
TO-35 fuel use from test 690
TO-35 fuel use from test 690
TO-35 fuel use from test 690
Nebraska Tractor Test 690
Diesel 6-speed 2WD April 31959, - April 13, 1959 Link: Nebraska Tractor Test 690 file
PTO performance
Power at rated engine speed
32.93 hp 24.6 kW
Fuel use
2.2 gal/hour 8.3 l/hour
Power at rated PTO speed
26.50 hp 19.8 kW
Fuel use
1.7 gal/hour 6.4 l/hour
Drawbar performance
Max power
30.49 hp 22.7 kW
Fuel use
2.3 gal/hour 8.7 l/hour
Gear 4 used for power test.
Max pull
3,877 lbs 1758 kg
Gear 2 used for pull test.
