fordson dexta
 | 1958 - 1961
Utility tractor | 1958 - 1961 | Utility tractor |
|---|---|---|---|
1958 - 1961 | |||
Utility tractor | |||
1958 - 1961 | |
|---|---|
Utility tractor |
Engine options | |
|---|---|
Ford-Perkins 2.4L 3-cyl diesel | |
Standard 2.2L 4-cyl gasoline |
Engine Detail | |
|---|---|
Ford-Perkins F3.144 | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 144 ci
2.4 L |
Bore/Stroke | 3.50x5.00 inches
89 x 127 mm |
Power | 32 hp
23.9 kW |
Air cleaner | oil bath |
Compression | 16.5:1 |
Rated RPM | 2000 |
Torque | 93 lb-ft
126.1 Nm |
Torque RPM | 1200 |
Firing order | 1-2-3 |
Starter volts | 12 |
Oil capacity | 7.66 qts
7.2 L |
Oil change | 100 h |
Coolant capacity | 9 qts
8.5 L |
Intake valve clearance | 0.010 inches*Hot
0.254 mm |
Exhaust valve clearance | 0.010 inches*Hot
0.254 mm |
Engine Detail | |
|---|---|
Standard Vanguard | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled inline | |
Displacement | 133.5 ci
2.2 L |
Bore/Stroke | 3.425x3.622 inches
87 x 92 mm |
Compression | 6:1 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 6.9 qts
6.5 L |
Sparkplug | Champion L10 |
Sparkplug gap | 0.031 inches
0.787 mm |
Intake valve clearance | 0.010 inches
0.254 mm |
Exhaust valve clearance | 0.006 inches
0.152 mm |

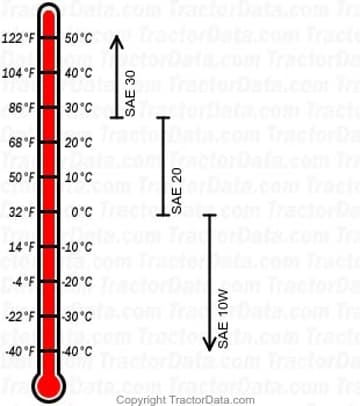

Engine Oil | |
|---|---|
 | |
Oil capacity | 7.2 qts
6.8 L |
Oil change | 200 h |
