Hesston 70-90
 | 1985
90 SeriesUtility tractorFiat built |
|---|---|
1985 | |
90 Series | |
Utility tractor | |
Fiat built | |
1985 | |
|---|---|
90 Series | |
Utility tractor | |
Fiat built |
Transmission options | |
|---|---|
12-speed synchromesh | |
12-speed mechanical shuttle | |
20-speed creeper |

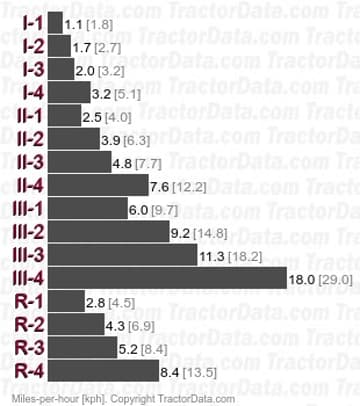

Transmission | |
|---|---|
Type | synchromesh |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Four gears (1-4) in three ranges (I-III) plus reverse range. | |
Speeds | |
|---|---|
 |

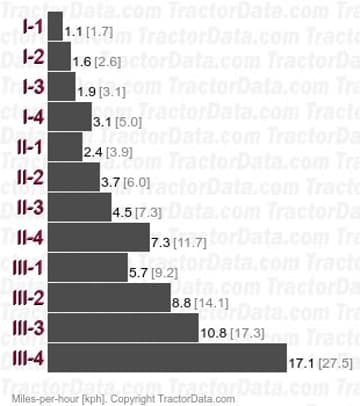

Transmission | |
|---|---|
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Speeds | |
|---|---|
With 18.4-30 rear tires. | |
 |

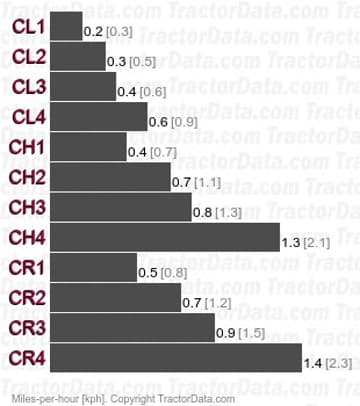

Transmission | |
|---|---|
Type | creeper |
Gears | 20 forward and 8 reverse |
Speeds | |
|---|---|
With 18.4-30 rear tires. | |
 |
