honda lawn tractors h2113
 | 1988 - ????
Lawn tractor | 1988 - ???? | Lawn tractor |
|---|---|---|---|
1988 - ???? | |||
Lawn tractor | |||
1988 - ???? | |
|---|---|
Lawn tractor |
Engine Detail | |
|---|---|
Honda GXV390 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.46x2.51 inches
88 x 64 mm |
Power | 13 hp
9.7 kW |
Rated RPM | 3600 |
Torque | 20.3 lb-ft
27.5 Nm |
Torque RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.004 inches (cold)
0.102 mm |
Exhaust valve clearance | 0.006 inches (cold)
0.152 mm |

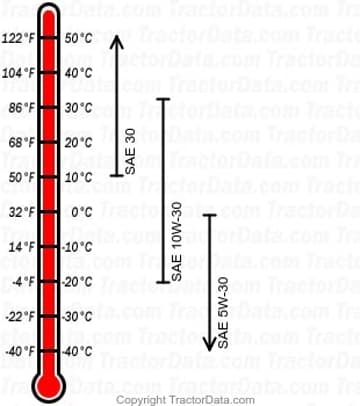

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.16 qts
1.1 L |
