honda lawn tractors h4013
 | 1990 - 1991 | 1990 - 1991 |
|---|---|---|
1990 - 1991 | ||
1990 - 1991 |
|---|
Engine Detail | |
|---|---|
Honda GXV390 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.46x2.51 inches
88 x 64 mm |
Power | 13 hp
9.7 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |

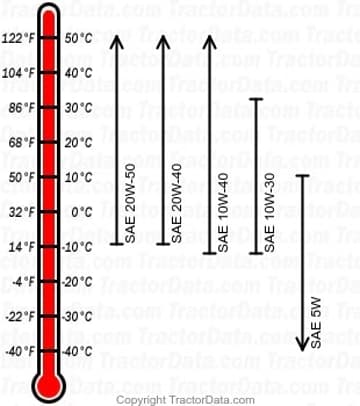

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.2 qts
1.1 L |
