ingersoll lawn tractors 3012
 | 1989 - 1993
3000 SeriesGarden tractor | 1989 - 1993 | 3000 Series | Garden tractor |
|---|---|---|---|---|
1989 - 1993 | ||||
3000 Series | ||||
Garden tractor | ||||
1989 - 1993 | |
|---|---|
3000 Series | |
Garden tractor |
Engine options | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
12HP Briggs & Stratton 480cc 2-cyl gasoline |
Engine Detail | |
|---|---|
Kohler M12AQS | |
gasoline | |
1-cylinder | |
air-cooled | |
The Kohler engine was used on the 3012 through the 1990 production year. | |
Displacement | 476 cc
29.07 ci |
Bore/Stroke | 3.375x3.25 inches
86 x 83 mm |
Power (gross) | 12 hp
8.9 kW |
Compression | 6.6:1 |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Sparkplug | Champion RH10 |
Sparkplug gap | 0.035 inches
0.889 mm |
Intake valve clearance | 0.009 inches (cold)
0.229 mm |
Exhaust valve clearance | 0.018 inches (cold)
0.457 mm |

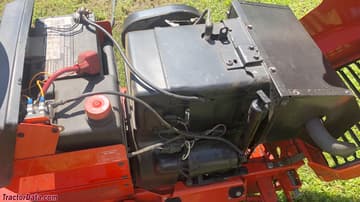

Ingersoll 3012 Engine | |
|---|---|
 | |
Image courtesy of Robert Ferdon |
Engine Detail | |
|---|---|
Briggs & Stratton 294447 | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft | |
The Briggs Vanguard engine was used on the 3012 beginning in 1991, tractor serial number 14145700. | |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.677x2.60 inches
68 x 66 mm |
Power (gross) | 12 hp
8.9 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.005 inches (cold)
0.127 mm |
Exhaust valve clearance | 0.005 inches (cold)
0.127 mm |
