international harvester 3088
 | 1981 - 1985
30 SeriesRow-Crop tractor | 1981 - 1985 | 30 Series | Row-Crop tractor |
|---|---|---|---|---|
1981 - 1985 | ||||
30 Series | ||||
Row-Crop tractor | ||||
1981 - 1985 | |
|---|---|
30 Series | |
Row-Crop tractor |
Engine Detail | |
|---|---|
International Harvester D358 | |
diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 358 ci
5.9 L |
Bore/Stroke | 3.875x5.0625 inches
98 x 129 mm |
Air cleaner | dual dry element |
Compression | 16.4:1 |
Rated RPM | 2400 |
Idle RPM | 900-2400 |
Starter volts | 12 |
Coolant capacity | 24 qts
22.7 L |

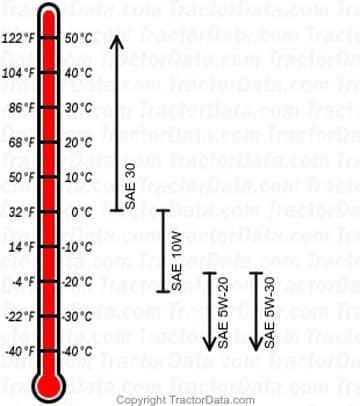

Engine Oil | |
|---|---|
 | |
Oil capacity | 11 qts
10.4 L |
